RC Airplane Launcher
Precision Launch System for Consistent & Reliable Takeoffs
Overview
The RC Airplane Launcher is an innovative mechanical system designed to launch RC aircraft with precision, consistency, and safety. This project addresses the limitations of hand launches by providing a controlled takeoff mechanism suitable for various aircraft configurations.
Our launcher features adjustable launch angles, variable thrust settings, and a reliable release mechanism that ensures stable and predictable launches every time.
Why a Launcher?
- ✅ Eliminates human error in launches
- ✅ Provides consistent launch velocity
- ✅ Enables precise launch angle control
- ✅ Safer for high-performance aircraft
- ✅ Repeatable testing conditions
Technical Specifications
Mechanical System
- Launch Method: Elastic catapult system
- Frame: Aluminum alloy construction
- Rails: 3m carbon fiber tracks
- Adjustability: 0-30° launch angle
Performance
- Launch Speed: 10-25 m/s (adjustable)
- Aircraft Weight: 500g - 5kg
- Acceleration: 2-4G maximum
- Setup Time: Under 5 minutes
Control System
- Trigger: Electronic release mechanism
- Tension Control: Winch with load cell
- Safety: Automated pre-launch checks
- Interface: Wireless remote control
Portability
- Weight: 15kg (disassembled)
- Transport: Modular 3-piece design
- Dimensions: 3m x 0.5m x 0.8m (assembled)
- Power: 12V battery operated
Development Timeline
Concept Development
January 2024
Identified need for reliable launch system. Researched existing designs and analyzed requirements for our aircraft fleet.
Design Phase
February - March 2024
Completed CAD modeling and structural analysis. Finalized mechanical design with focus on portability and ease of use.
Prototype Build
April 2024
Fabricated first prototype using workshop facilities. Conducted initial tension and release mechanism tests.
Field Testing
May - June 2024

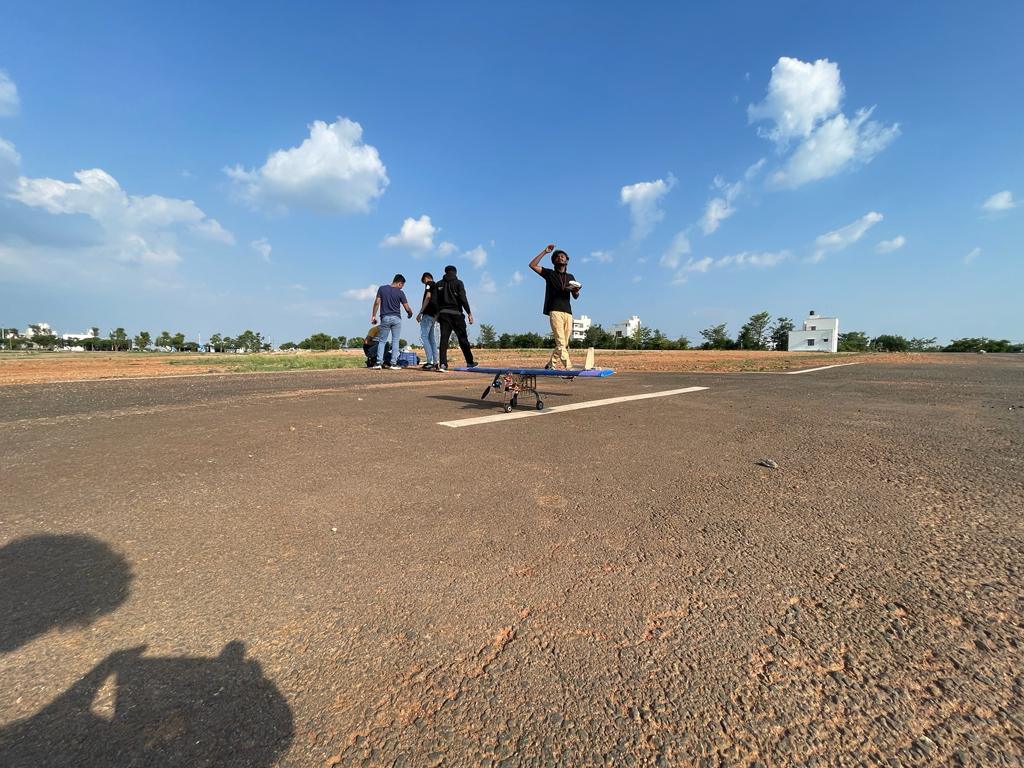

Performed field tests with various aircraft models. Gathered data on launch consistency and reliability.
Optimization Phase
Current
Refining design based on test results. Adding electronic controls and safety features for competition readiness.
Project Gallery
Key Advantages
Consistent Launches
Eliminates variability of hand launches. Every takeoff is identical, perfect for testing and competitions.
Adjustable Settings
Customize launch parameters for different aircraft weights, wing loadings, and flight conditions.
Angle Control
Adjustable launch angle from 0-30° allows optimization for different aircraft types and weather conditions.
Safety First
Remote operation keeps pilot at safe distance. Automated checks prevent accidental launches and equipment damage.
Engineering Challenges
Challenge: Universal Mounting
Designing a mounting system compatible with aircraft of varying sizes and fuselage shapes.
Solution
Created adjustable cradle system with padded clamps and quick-release mechanism. Accommodates fuselage diameters from 30mm to 100mm.
Challenge: Force Calibration
Determining optimal launch force for different aircraft weights without over-stressing airframes.
Solution
Integrated load cell sensors and developed calibration protocol. Created lookup table for recommended settings based on aircraft specifications.
